Category > Physics Posted 08 May 2017 My Price 4.00

Problem 4

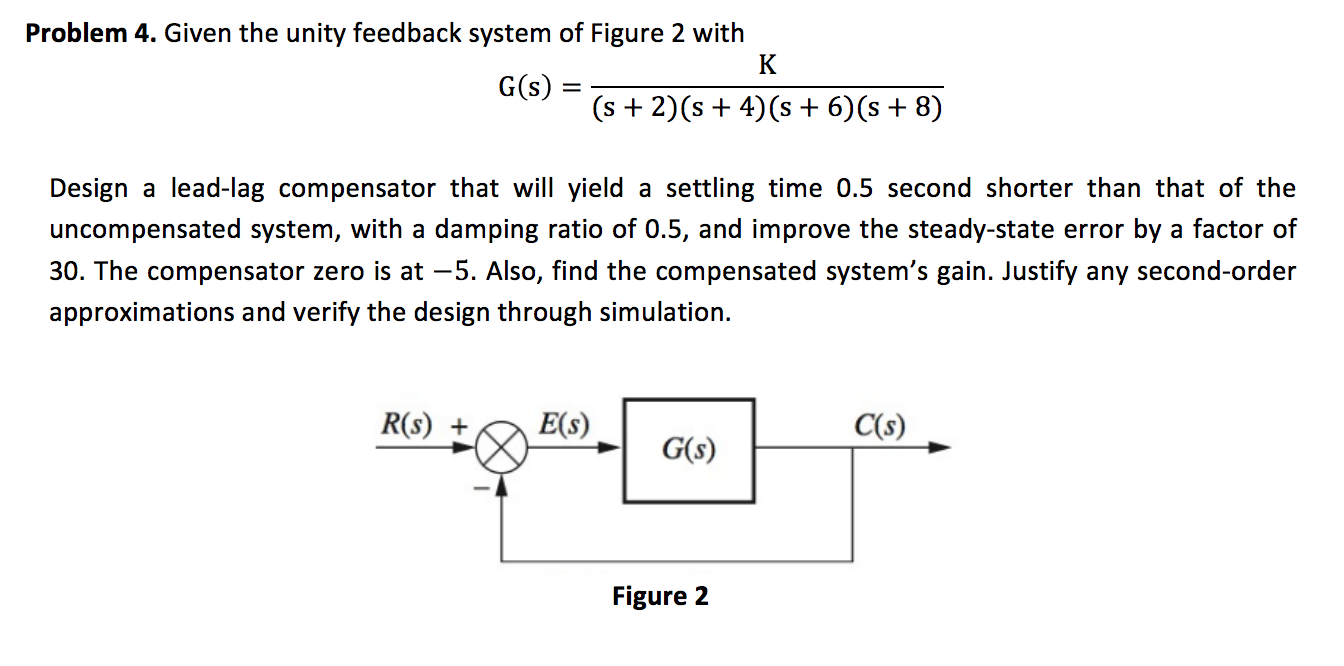

Problem 4. Given the unity feedback system of Figure 2 with K
6(3) = (s + 2)(s + 4)(s + 6)(s + 3) Design a lead-lag compensator that will yield a settling time 0.5 second shorter than that of the
uncompensated system, with a damping ratio of 0.5, and improve the steady-state error by a factor of
30. The compensator zero is at —5. Also, find the compensated system’s gain. Justify any second-order approximations and verify the design through simulation. Figure 2
