Category > Physics Posted 08 May 2017 My Price 6.00

filter circuit

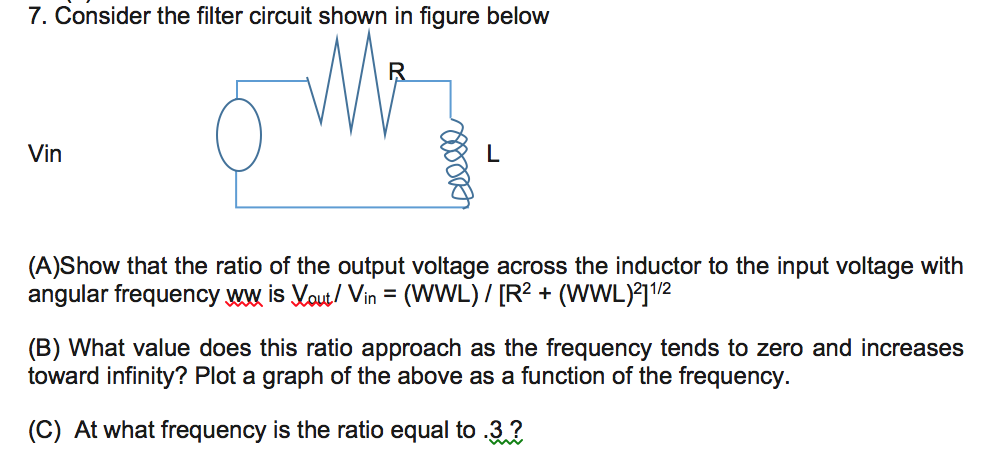

7. Consider the filter circuit shown in figure attached



        Screen Shot 2017-04-18 at 2.01.43 PM.png

(A)Show that the ratio of the output voltage across the inductor to the input voltage with angular frequency ww is Vout / Vin = (WWL) / [R2 + (WWL)2]1/2



(B) What value does this ratio approach as the frequency tends to zero and increases toward infinity? Plot a graph of the above as a function of the frequency.



(C)  At what frequency is the ratio equal to .3 ?
