Category > Computer Science Posted 16 Dec 2017 My Price 10.00

Include MultiSIM screenshots where indicated

Must use show all work Multisim files attached as well.

Show work for full credit. Include MultiSIM screenshots where indicated.

  1. Consider the parallel inductive reactive circuit below. Calculate the following: (Express all answers in magnitude/phase angle form)Zeq
  2. IT
  3. XL2
  4. XL1
  5. IR1
  6. IR2
  7. IL1
  8. IL2
  9. Parallel Inductive Circuit:

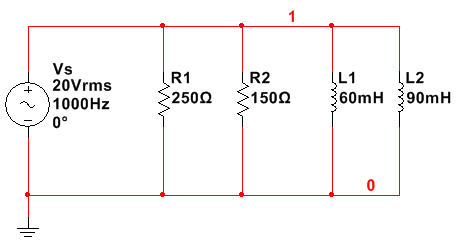

  10. question 1.png
  11. Consider the series RC circuit below:Assume C1 is completely discharged with S1 in the position shown. If S1 is moved to the top position, how long will it take for the capacitor voltage to reach3V
  12. 6V
  13. 15V
  14. 20V
  15. Assume that C is completely discharged with S1 in the position shown. If S1 is moved to the top position, how much is the resistor voltage at the following time intervals?t = 0 s
  16. t = 4.5 ms
  17. t = 10 ms
  18. t = 15 ms
  19. t = 25 ms
  20. Series RC Circuit:

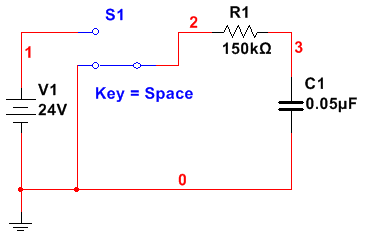

  21. series RC circuit.png
  22. Analyze the RLC circuit below to determine the following (include both polar and complex forms where applicable):Zeq
  23. IT
  24. IR1
  25. IL1
  26. Real Power (Watts)
  27. Reactive Power (VARs)
  28. Apparent Power (VAs)
  29. Power Factor
  30. Construct the circuit in MultiSIM and run a Single Frequency Analysis to confirm your calculations for the phasor values in part 3. Capture a screenshot of the analysis for both Magnitude/Phase (polar) and Real/Imaginary (complex).
  31. Measure the real power of the circuit and the power factor using a watt meter. Capture a screenshot of the watt meter readings.RLC Circuit:

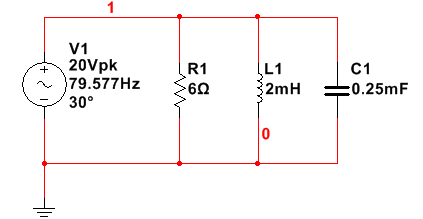

  32. RLC Circuit.png
